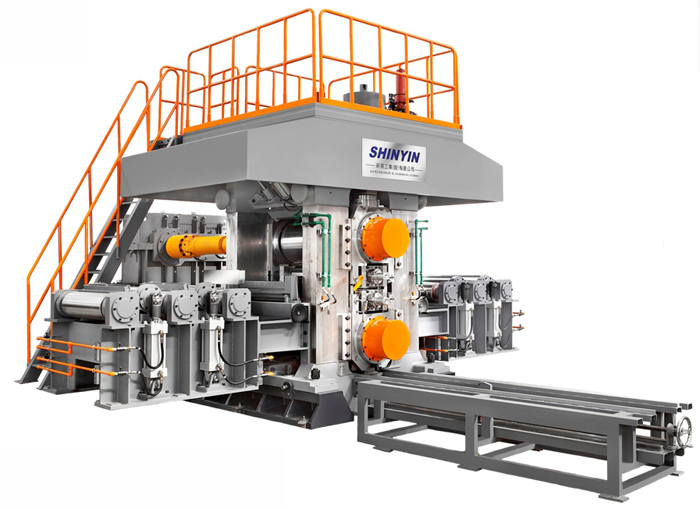

Shinyin cold-rolled mill use high efficiency Automatic Gauge Control (AGC) system.
Features:
▶ High precision hydraulic servo system and Laser thickness gauge meter.
▶ Tension Leveler equipment helped stabilize the rolling process.
▶ AC vector ratio control system.
▶ It could installation Automatic Shape Control ( ASC) system.
▶ Achieve the best flatness and control thickness deviation.
|

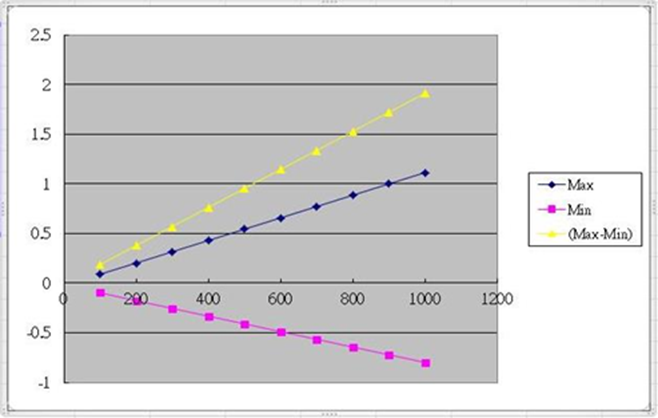

Loading ( tons ) |
Max ( mm ) |
Min ( mm ) |
Max-Min ( mm ) |
Loading ( tons ) |
Max ( mm ) |
Min ( mm ) |
Max-Min ( mm ) |
|
500 |
0.54241 |
-0.40974 |
0.95215 |
1000 |
1.1122 |
-0.79768 |
1.90988 |
|
400 |
0.42863 |
-0.332 |
0.76063 |
900 |
0.99818 |
-0.72013 |
1.71831 |
|
300 |
0.31498 |
-0.25413 |
0.56911 |
800 |
0.88421 |
-0.64256 |
1.52677 |
|
200 |
0.20168 |
-0.17597 |
0.37765 |
700 |
0.77021 |
-0.56501 |
1.33522 |
|
100 |
0.088922 |
-0.097384 |
0.186306 |
600 |
0.65629 |
-0.4874 |
1.14369 |
